chapter 7: Sovling Calculs problems

이 장에서는 Python standard library 와 SymPy를 이용한 코딩을 해보자.

_images/chapter7-1.png _images/chapter7-2.png

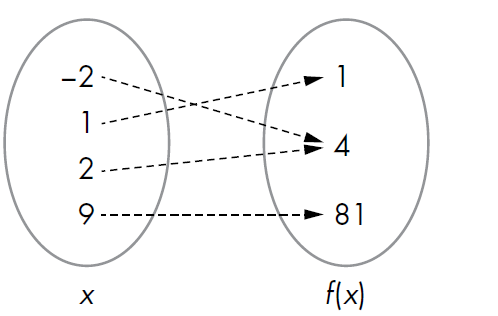

Domain and Range of a Function

An Overview of Common Mathematical Functions

import math
print(math.sin(math.pi/2))
#1.0

import sympy
sympy.sin(math.pi/2)
#1.00000000000000

from sympy import Symbol
theta = Symbol('theta')
#print(math.sin(theta) + math.sin(theta))

print(sympy.sin(theta) + sympy.sin(theta))
#2*sin(theta)


from sympy import sin, solve, Symbol
u = Symbol('u')
t = Symbol('t')
g = Symbol('g')
theta = Symbol('theta')
print(solve(u*sin(theta)-g*t, t))
#[u*sin(theta)/g]

Assumptions in SymPy

from sympy import Symbol
x = Symbol('x')
if (x+5) > 0:
    print('Do Something')
else:
    print('Do Something else')

##

x = Symbol('x', positive=True)
if (x+5) > 0:
    print('Do Something')
else:
    print('Do Something else')

Finding the Limit of Functions

_images/chapter7-3.png
from sympy import Limit, Symbol, S
x = Symbol('x')
print(Limit(1/x, x, S.Infinity))
#Limit(1/x, x, oo, dir='-')
print(l.doit())
print(Limit(1/x, x, 0, dir='-').doit())
print(Limit(1/x, x, 0, dir='+').doit())

Continuous Compound Interest

_images/chapter7-4.png
from sympy import Limit, Symbol, S
n = Symbol('n')
print(Limit((1+1/n)**n, n, S.Infinity).doit())
_images/chapter7-5.png
from sympy import Symbol, Limit, S
p = Symbol('p', positive=True)
r = Symbol('r', positive=True)
t = Symbol('t', positive=True)
print(Limit(p*(1+r/n)**(n*t), n, S.Infinity).doit())
#p*exp(r*t)

Instantaneous Rate of Change

_images/chapter7-6.png _images/chapter7-7.png
from sympy import Symbol, Limit
t = Symbol('t')
St = 5*t**2 + 2*t + 8
t1 = Symbol('t1')
delta_t = Symbol('delta_t')
St1 = St.subs({t: t1})
St1_delta = St.subs({t: t1 + delta_t})

print(Limit((St1_delta-St1)/delta_t, delta_t, 0).doit())
#10*t1 + 2

Finding the Derivative of Functions

from sympy import Derivative, Symbol
x = Symbol('x')
f = (x**3 + x**2 + x)*(x**2+x)
print(Derivative(f, x).doit())
#(2*x + 1)*(x**3 + x**2 + x) + (x**2 + x)*(3*x**2 + 2*x + 1)

A Derivative Calculator

'''
Derivative calculator
'''
from sympy import Symbol, Derivative, sympify, pprint
from sympy.core.sympify import SympifyError
def derivative(f, var):
    var = Symbol(var)
    d = Derivative(f, var).doit()
    pprint(d)
if __name__=='__main__':
    f = input('Enter a function: ')
    var = input('Enter the variable to differentiate with respect to: ')
    try:
        f = sympify(f)
    except SympifyError:
        print('Invalid input')
    else:
        derivative(f, var)

#2*x**2 + 3*x + 1
#x

Calculating Partial Derivatives

_images/chapter7-8.png
'''
Derivative calculator
'''
from sympy import Symbol, Derivative, sympify, pprint
from sympy.core.sympify import SympifyError
def derivative(f, var):
    var = Symbol(var)
    d = Derivative(f, var).doit()
    pprint(d)
if __name__=='__main__':
    f = input('Enter a function: ')
    var = input('Enter the variable to differentiate with respect to: ')
    try:
        f = sympify(f)
    except SympifyError:
        print('Invalid input')
    else:
        derivative(f, var)

#2*x**2 + 3*x + 1
#x

#2*x*y + x*y**2
#x

Higher-Order Derivatives and Finding the Maxima and Minima

_images/chapter7-9.png
from sympy import Symbol, solve, Derivative
x = Symbol('x')
f = x**5 - 30*x**3 + 50*x
d1 = Derivative(f, x).doit()
critical_points = solve(d1)
print(critical_points)
#[-sqrt(-sqrt(71) + 9), sqrt(-sqrt(71) + 9), -sqrt(sqrt(71) + 9),
#sqrt(sqrt(71) + 9)]

A = critical_points[2]
B = critical_points[0]
C = critical_points[1]
D = critical_points[3]


d2 = Derivative(f, x, 2).doit()

print(d2.subs({x:B}).evalf())
#127.661060789073
print(d2.subs({x:C}).evalf())
#-127.661060789073
print(d2.subs({x:A}).evalf())
#-703.493179468151
print(d2.subs({x:D}).evalf())
#703.493179468151


x_min = -5
x_max = 5
print(f.subs({x:A}).evalf())
#705.959460380365
print(f.subs({x:C}).evalf())
#25.0846626340294
print(f.subs({x:x_min}).evalf())
#375.000000000000
print(f.subs({x:x_max}).evalf())
#-375.000000000000

print(f.subs({x:B}).evalf())
#-25.0846626340294
print(f.subs({x:D}).evalf())
#-705.959460380365
print(f.subs({x:x_min}).evalf())
#375.000000000000
print(f.subs({x:x_max}).evalf())
#-375.000000000000

Finding the Global Maximum Using Gradient Ascent

_images/chapter7-10.png _images/chapter7-11.png
'''
Use gradient ascent to find the angle at which the projectile
has maximum range for a fixed velocity, 25 m/s
'''
import math
from sympy import Derivative, Symbol, sin
def grad_ascent(x0, f1x, x):
    epsilon = 1e-6
    step_size = 1e-4
    x_old = x0
    x_new = x_old + step_size*f1x.subs({x:x_old}).evalf()
    while abs(x_old - x_new) > epsilon:
        x_old = x_new
        x_new = x_old + step_size*f1x.subs({x:x_old}).evalf()
    return x_new

def find_max_theta(R, theta):
    # Calculate the first derivative
    R1theta = Derivative(R, theta).doit()
    theta0 = 1e-3
    theta_max = grad_ascent(theta0, R1theta, theta)
    return theta_max
if __name__ == '__main__':
    g = 9.8
    # Assume initial velocity
    u = 25
    # Expression for range
    theta = Symbol('theta')
    R = u**2*sin(2*theta)/g

    theta_max = find_max_theta(R, theta)
    print('Theta: {0}'.format(math.degrees(theta_max)))
    print('Maximum Range: {0}'.format(R.subs({theta:theta_max})))

#Theta: 44.99999978475661
#Maximum Range: 63.7755102040816

A Generic Program for Gradient Ascent

'''
Use gradient ascent to find the maximum value of a
single-variable function
'''
from sympy import Derivative, Symbol, sympify
def grad_ascent(x0, f1x, x):
    epsilon = 1e-6
    step_size = 1e-4
    x_old = x0
    x_new = x_old + step_size*f1x.subs({x:x_old}).evalf()
while abs(x_old - x_new) > epsilon:
    x_old = x_new
    x_new = x_old + step_size*f1x.subs({x:x_old}).evalf()
    return x_new
if __name__ == '__main__':
    f = input('Enter a function in one variable: ')
    var = input('Enter the variable to differentiate with respect to: ')
    var0 = float(input('Enter the initial value of the variable: '))
try:
    f = sympify(f)
except SympifyError:
    print('Invalid function entered')
else:
    var = Symbol(var)
    d = Derivative(f, var).doit()
    var_max = grad_ascent(var0, d, var)
    print('{0}: {1}'.format(var.name, var_max))
    print('Maximum value: {0}'.format(f.subs({var:var_max})))

#===============================================================================
# Enter a function in one variable: 25*25*sin(2*theta)/9.8
# Enter the variable to differentiate with respect to: theta
# Enter the initial value of the variable: 0.001
# theta: 0.785360029379083
# Maximum value: 63.7755100185965
#===============================================================================

#===============================================================================
# Enter a function in one variable: cos(y)
# Enter the variable to differentiate with respect to: y
# Enter the initial value of the variable: 0.01
# y: 0.00999900001666658
# Maximum value: 0.999950010415832
#===============================================================================

#===============================================================================
# Enter a function in one variable: cos(y) + k
# Enter the variable to differentiate with respect to: y
# Enter the initial value of the variable: 0.01
# y: 0.00999900001666658
# Maximum value: k + 0.999950010415832
#===============================================================================

#===============================================================================
# Enter a function in one variable: x**5 - 30*x**3 + 50*x
# Enter the variable to differentiate with respect to: x
# Enter the initial value of the variable: -2
# x: -4.17445116397103
# Maximum value: 705.959460322318
#===============================================================================

#===============================================================================
# Enter a function in one variable: x**5 - 30*x**3 + 50*x
# Enter the variable to differentiate with respect to: x
# Enter the initial value of the variable: 0.5
# x: 0.757452532565767
# Maximum value: 25.0846622605419
#===============================================================================
_images/chapter7-12.png

The Role of the Step Size and Epsilon

_images/chapter7-13.png
'''
Use gradient ascent to find the maximum value of a
single-variable function. This also checks for the existence
of a solution for the equation f'(x)=0.
'''
from sympy import Derivative, Symbol, sympify, solve
def grad_ascent(x0, f1x, x):
    # Check if f1x=0 has a solution
    if not solve(f1x):
        print('Cannot continue, solution for {0}=0 does not exist'.format(f1x))
        return
    epsilon = 1e-6
    step_size = 1e-4
    x_old = x0
    x_new = x_old + step_size*f1x.subs({x:x_old}).evalf()
while abs(x_old - x_new) > epsilon:
    x_old = x_new
    x_new = x_old + step_size*f1x.subs({x:x_old}).evalf()
    return x_new

if __name__ == '__main__':
    f = input('Enter a function in one variable: ')
    var = input('Enter the variable to differentiate with respect to: ')
    var0 = float(input('Enter the initial value of the variable: '))
    try:
        f = sympify(f)
    except SympifyError:
        print('Invalid function entered')
    else:
        var = Symbol(var)
        d = Derivative(f, var).doit()
        var_max = grad_ascent(var0, d, var)
    if var_max:
        print('{0}: {1}'.format(var.name, var_max))
        print('Maximum value: {0}'.format(f.subs({var:var_max})))

#===============================================================================
# Enter a function in one variable: log(x)
# Enter the variable to differentiate with respect to: x
# Enter the initial value of the variable: 0.1
# Cannot continue, solution for 1/x=0 does not exist
#===============================================================================

Finding the Integrals of Functions

_images/chapter7-14.png
from sympy import Integral, Symbol



if __name__=="__main__":
    x = Symbol('x')
    k = Symbol('k')
    print(Integral(k*x, x))
    #Integral(k*x, x)

    print(Integral(k*x, x).doit())
    #k*x**2/2
    print(Integral(k*x, (x, 0, 2)).doit())
    #2*k

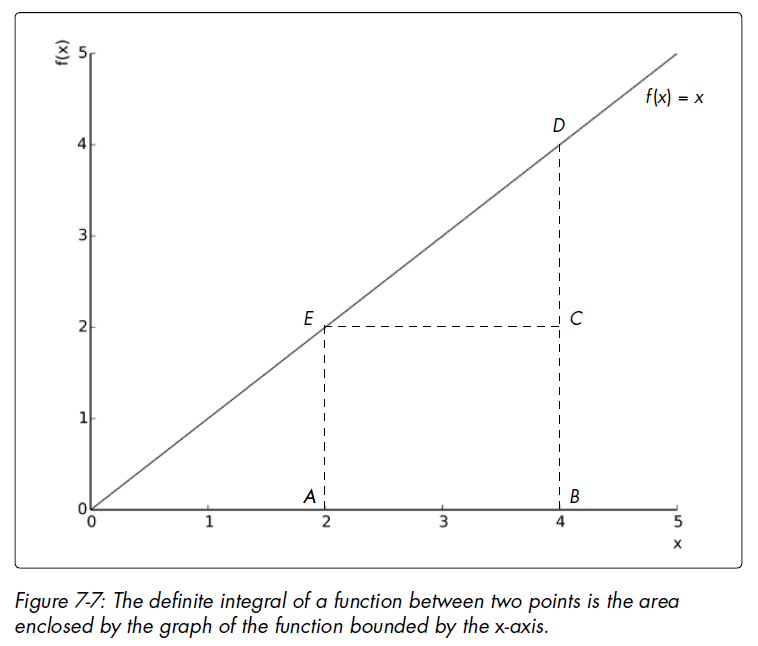

from sympy import Integral, Symbol
x = Symbol('x')
print(Integral(x, (x, 2, 4)).doit())
_images/chapter7-15.png

Probability Density Functions

_images/chapter7-16.png _images/chapter7-17.png
from sympy import Symbol, exp, sqrt, pi, Integral
x = Symbol('x')
p = exp(-(x - 10)**2/2)/sqrt(2*pi)
print(Integral(p, (x, 11, 12)).doit().evalf())
#0.135905121983278


from sympy import Symbol, exp, sqrt, pi, Integral, S
x = Symbol('x')
p = exp(-(x – 10)**2/2)/sqrt(2*pi)
print(Integral(p, (x, S.NegativeInfinity, S.Infinity)).doit().evalf())
#1.00000000000000
